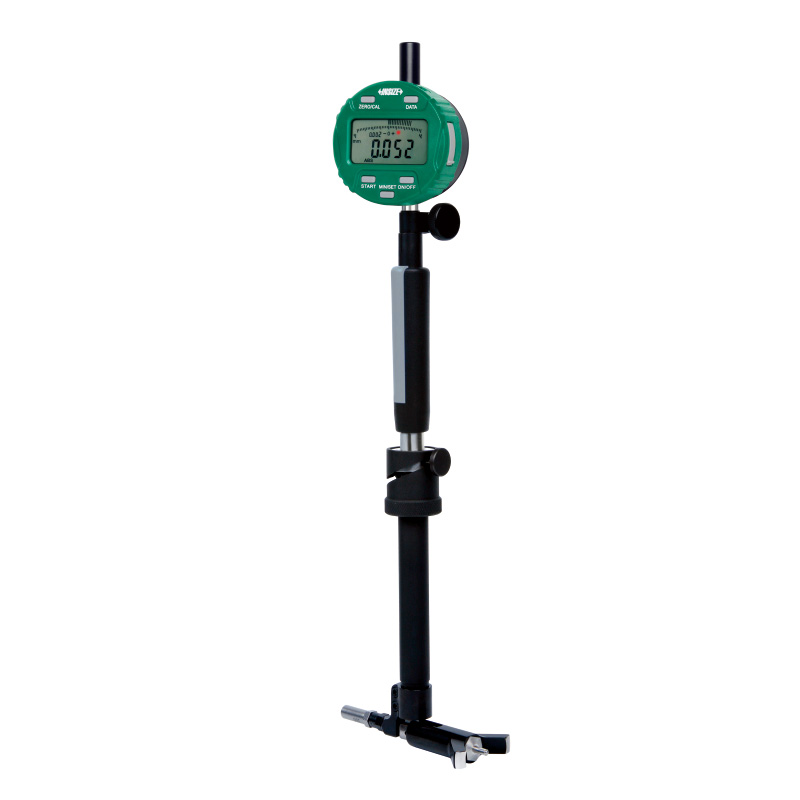

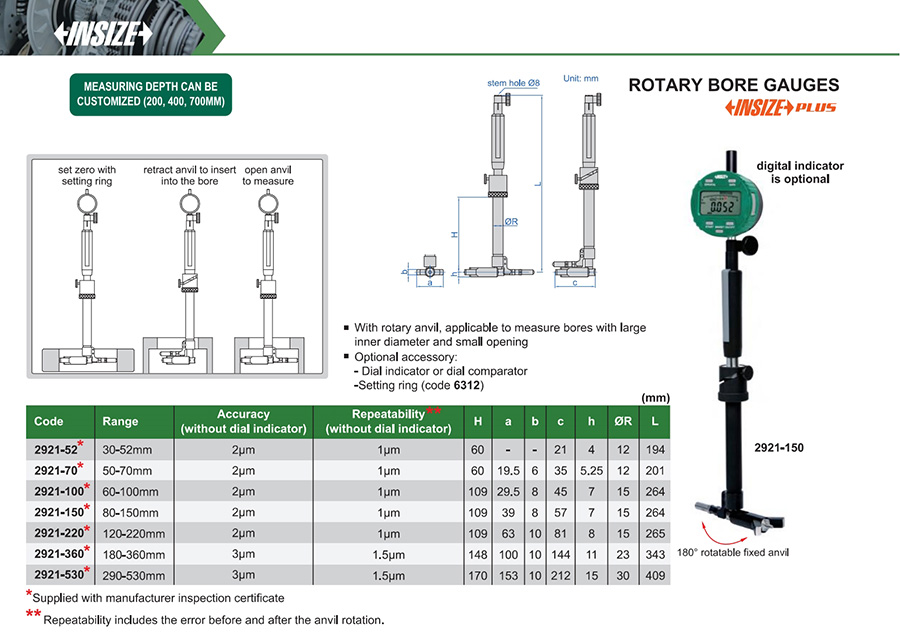

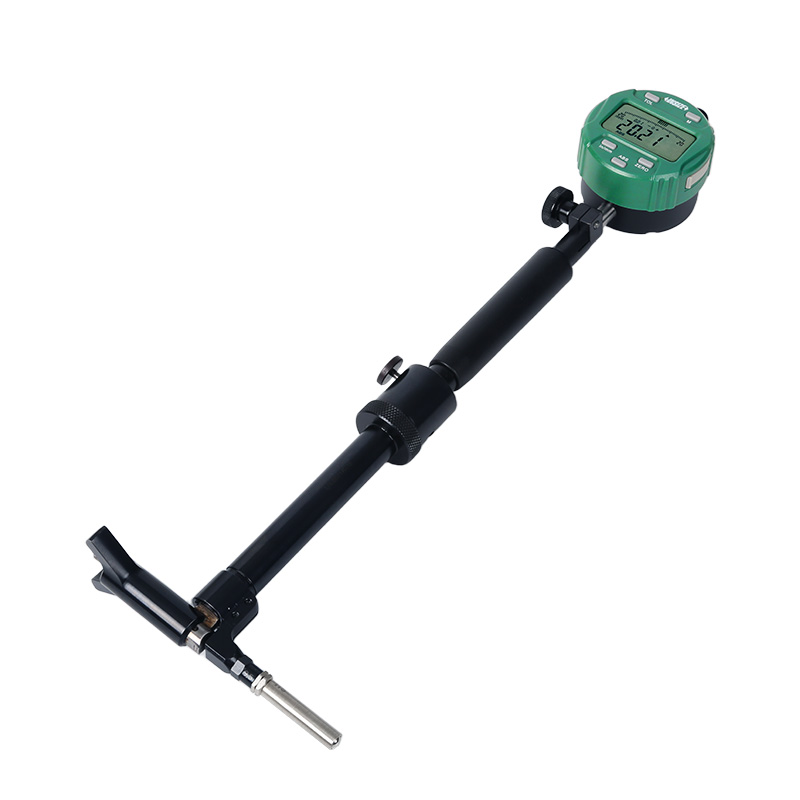

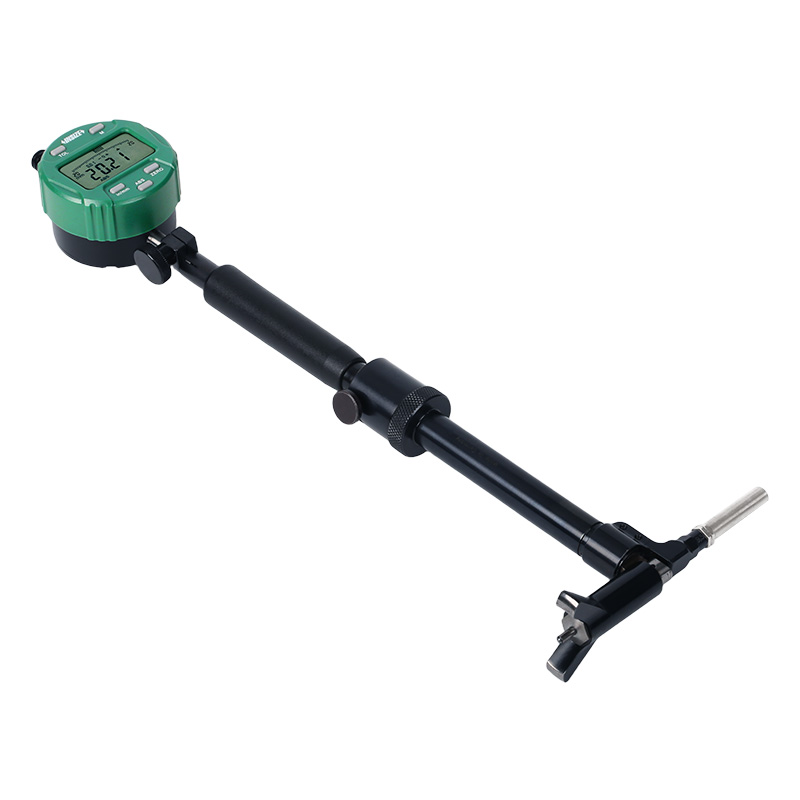

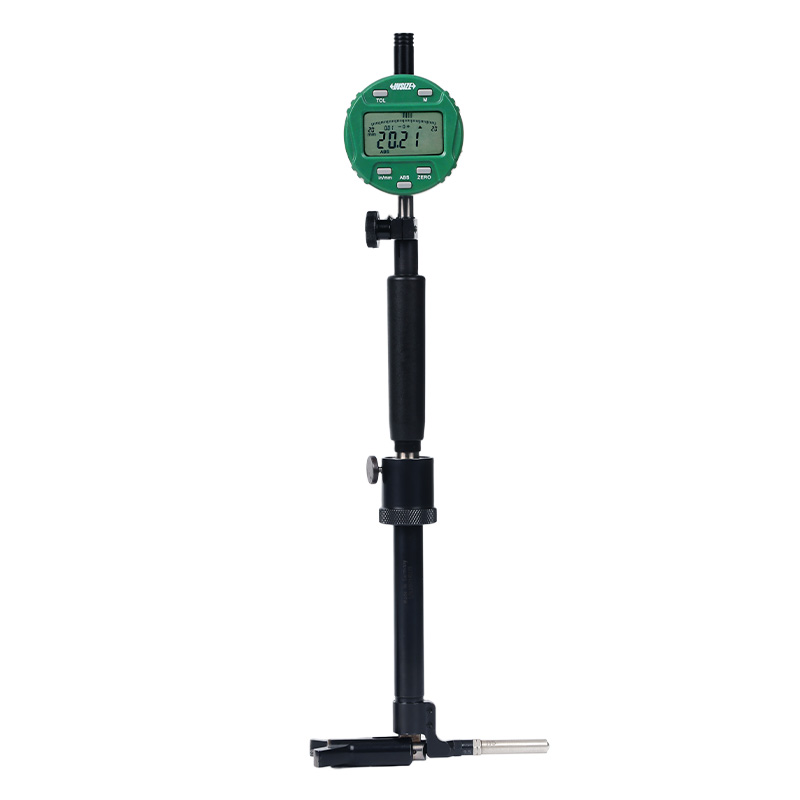

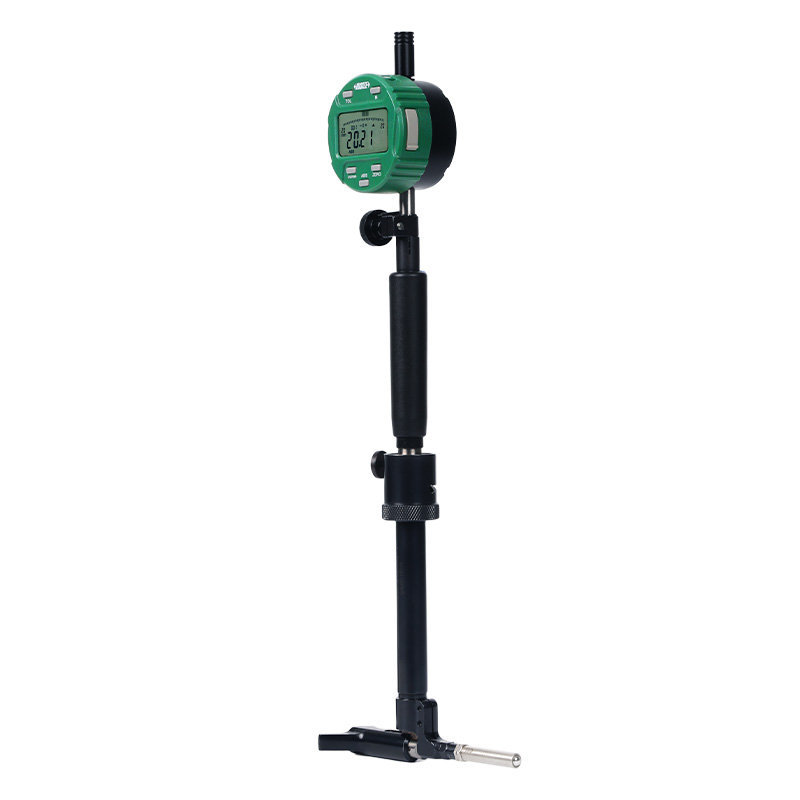

Rotary Bore Gauges
Code: 2921
With rotary anvil, applicable to measure bores with large inner diameter and small opening
Optional accessory: Dial indicator or dial comparator, Setting ring (code 6312)
| Code | Range | Accuracy | Repeatability |
|---|---|---|---|
| 2921-52 | 30-52mm | 2μm | 1μm |
| 2921-70 | 50-70mm | 2μm | 1μm |
| 2921-100 | 60-100mm | 2μm | 1μm |
| 2921-150 | 80-150mm | 2μm | 1μm |
| 2921-220 | 120-220mm | 2μm | 1μm |
| 2921-360 | 180-360mm | 3μm | 1.5μm |
| 2921-530 | 290-530mm | 3μm | 1.5μm |
