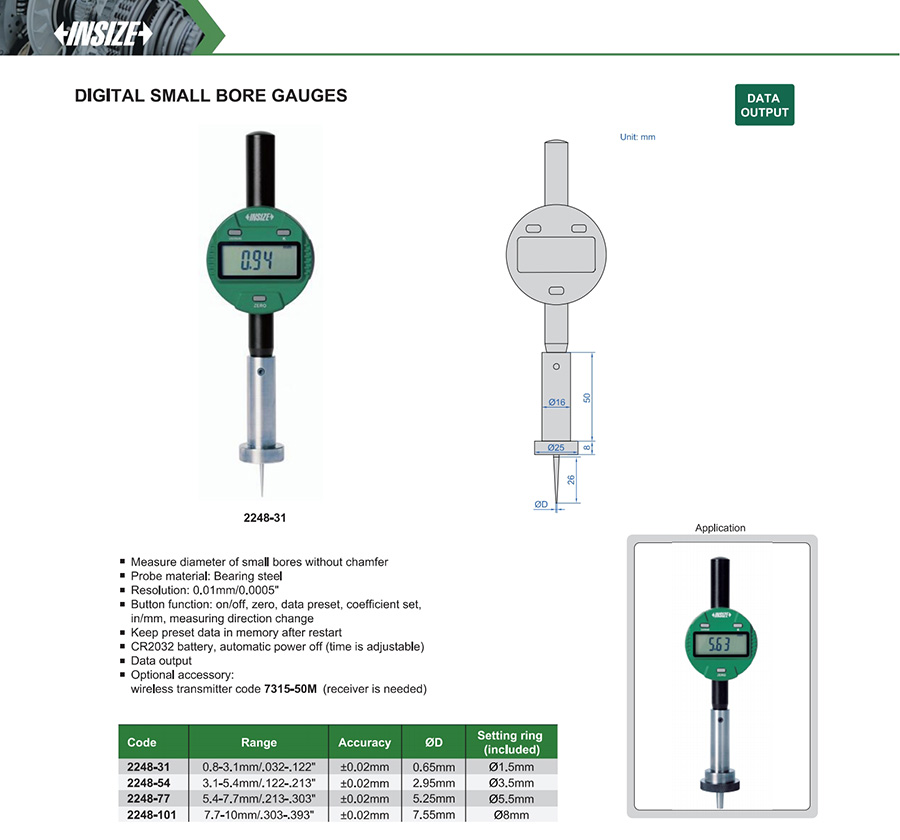

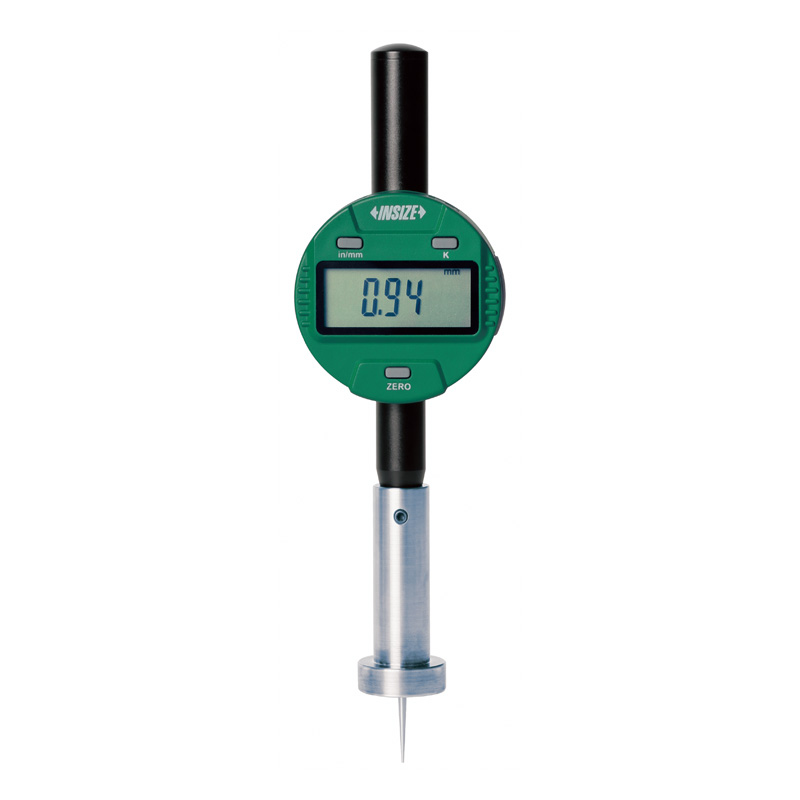

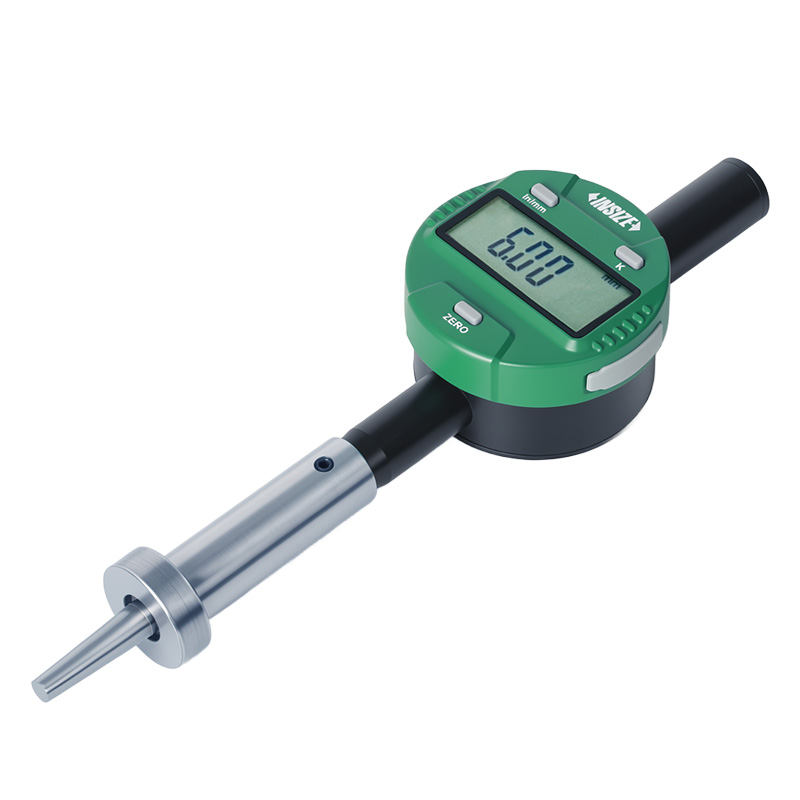

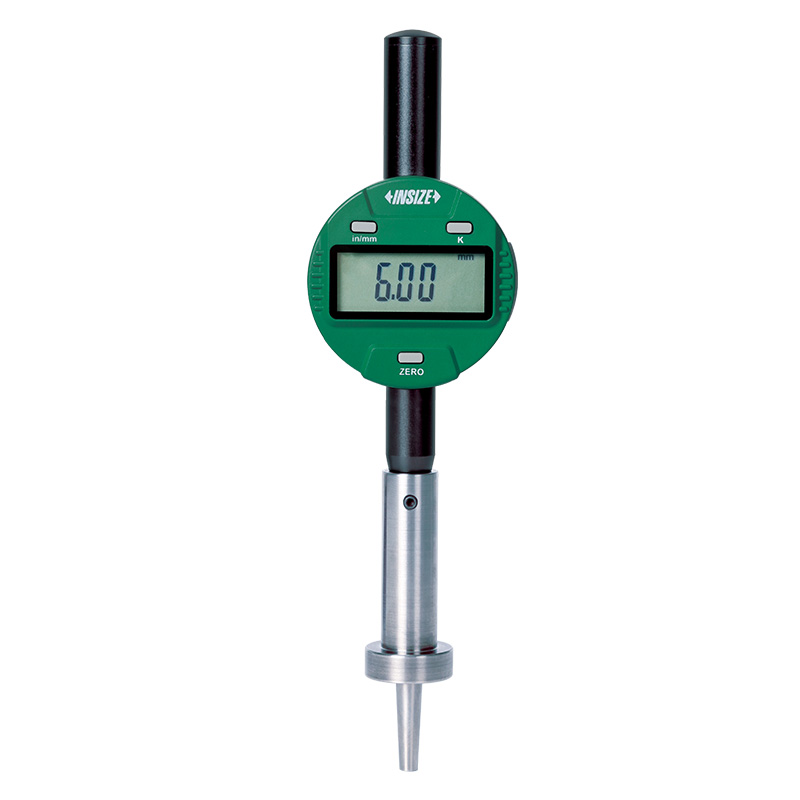

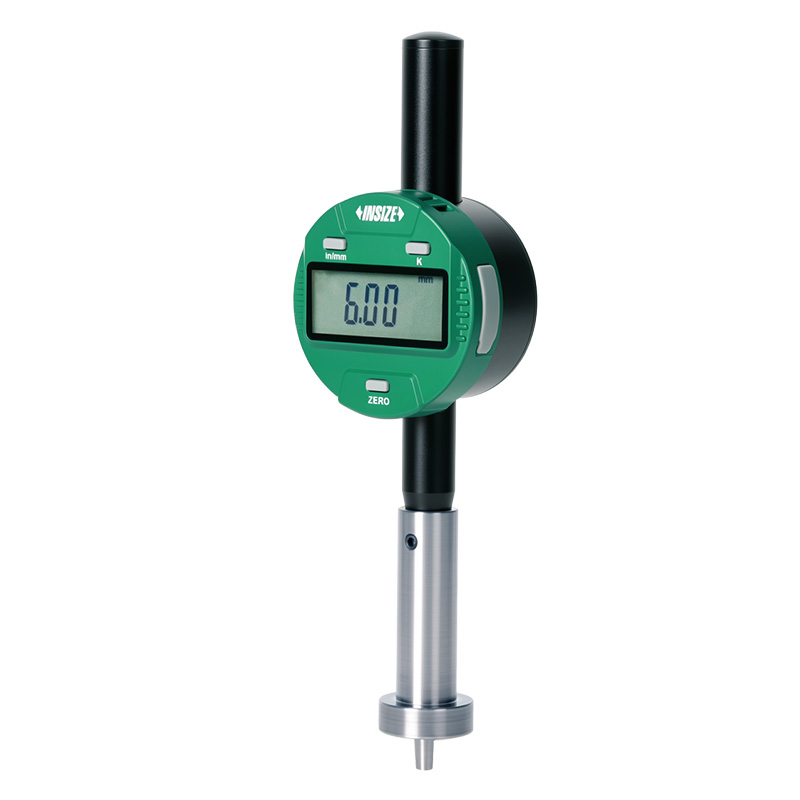

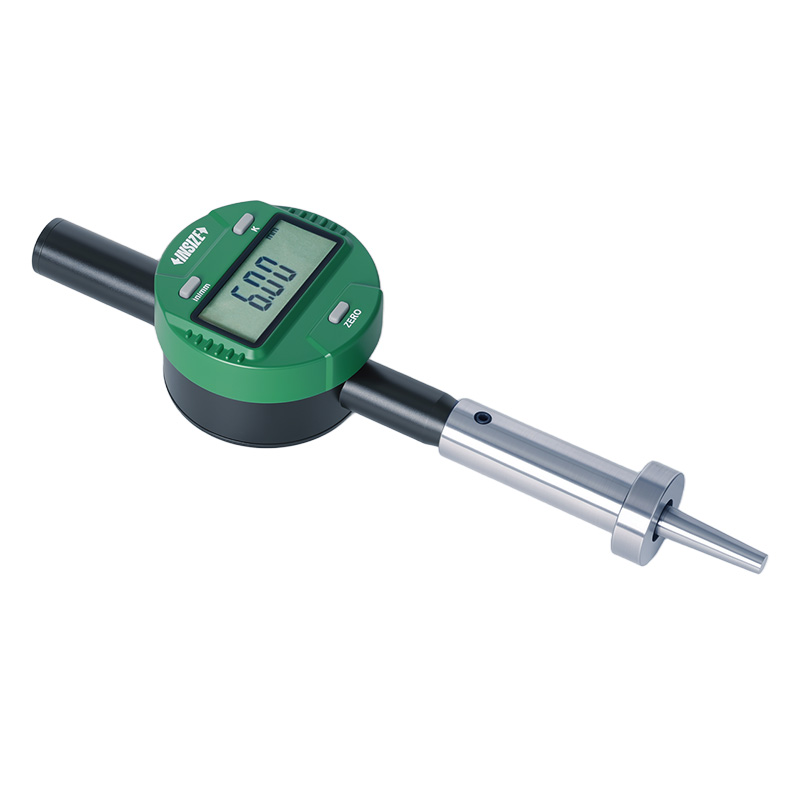

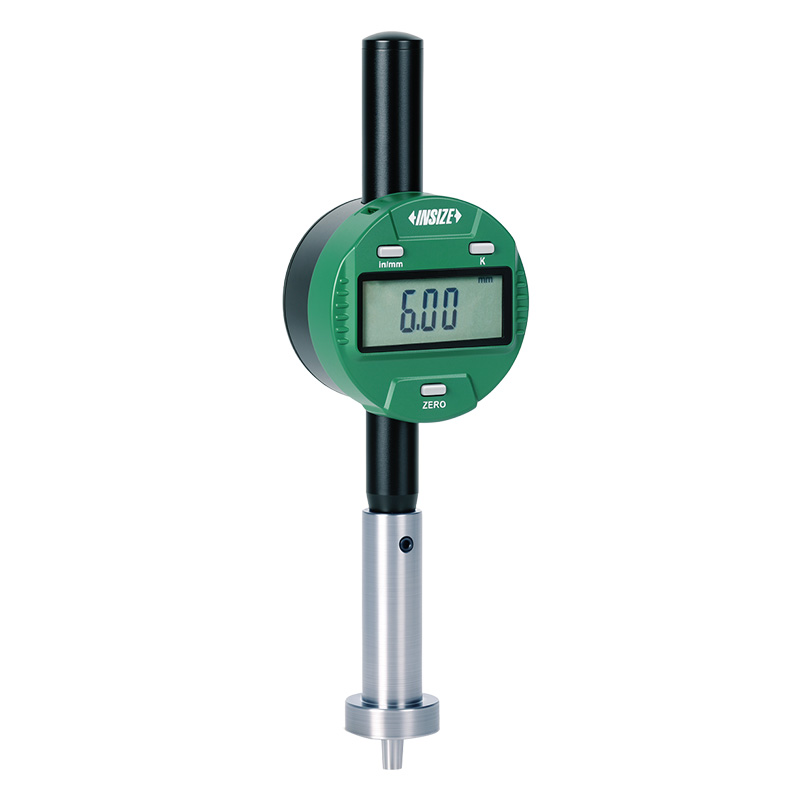

Digital Small Bore Gauges
Code: 2248
Measure diameter of small bores without chamfer
Probe material: Bearing steel
Button function: on/off, zero, data preset, coefficient set, in/mm, measuring direction change
Keep preset data in memory after restart
| Code | Range | Accuracy |
|---|---|---|
| 2248-31 | 0.8-3.1mm | ±0.02mm |
| 2248-54 | 3.1-5.4mm | ±0.02mm |
| 2248-77 | 5.4-7.7mm | ±0.02mm |
| 2248-101 | 7.7-10mm | ±0.02mm |
