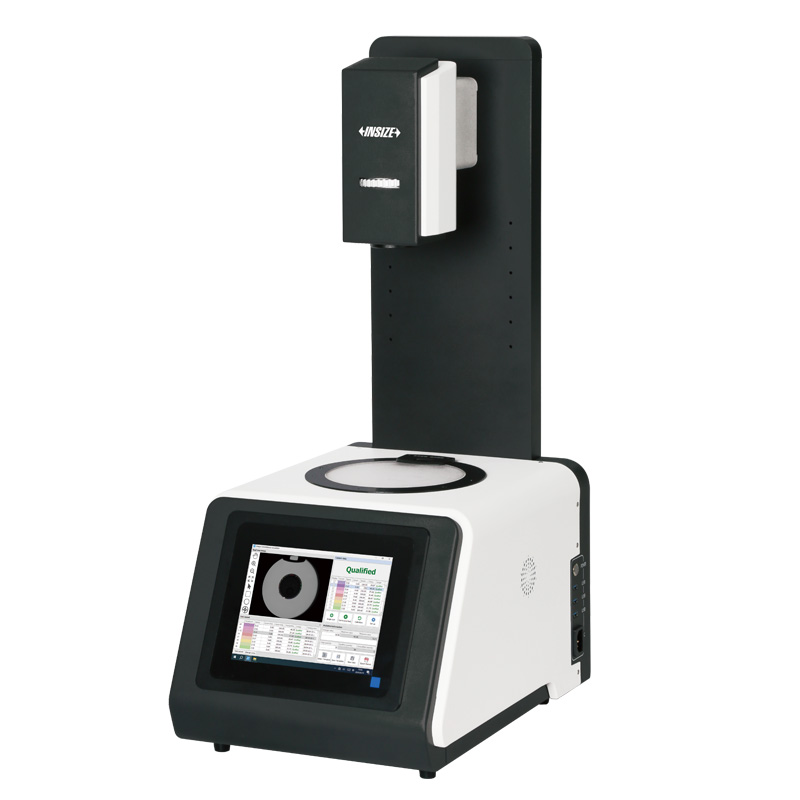

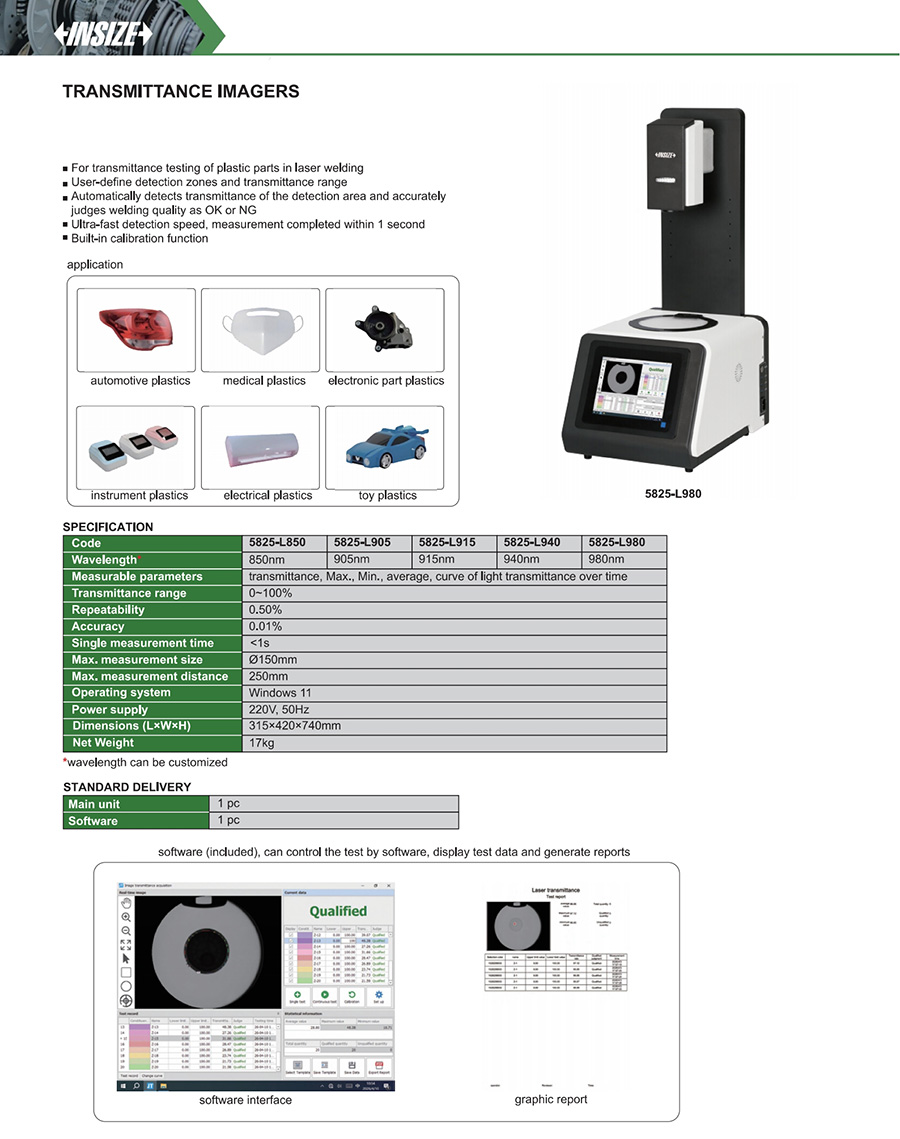

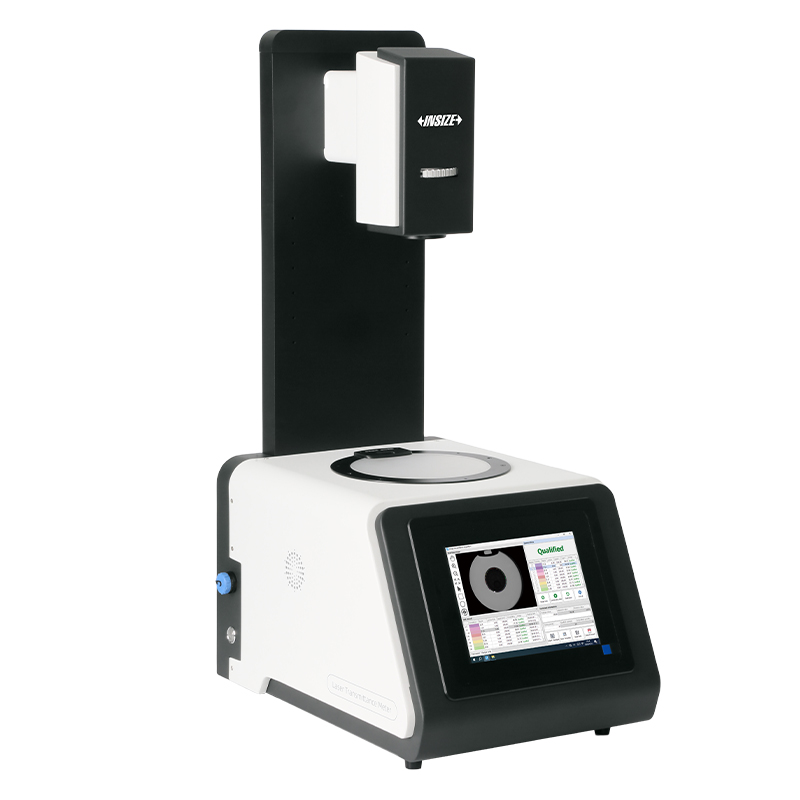

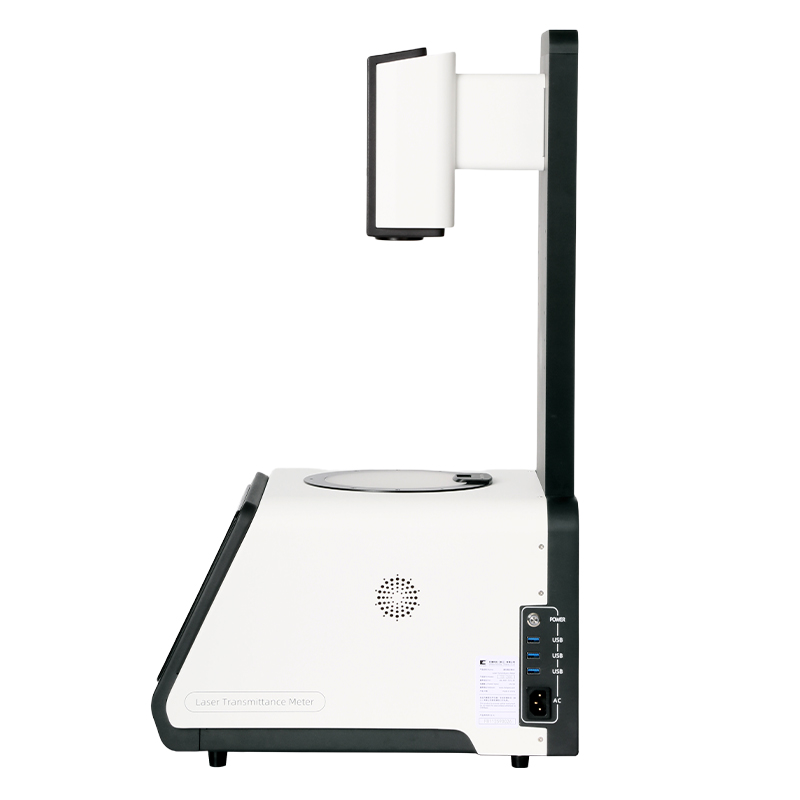

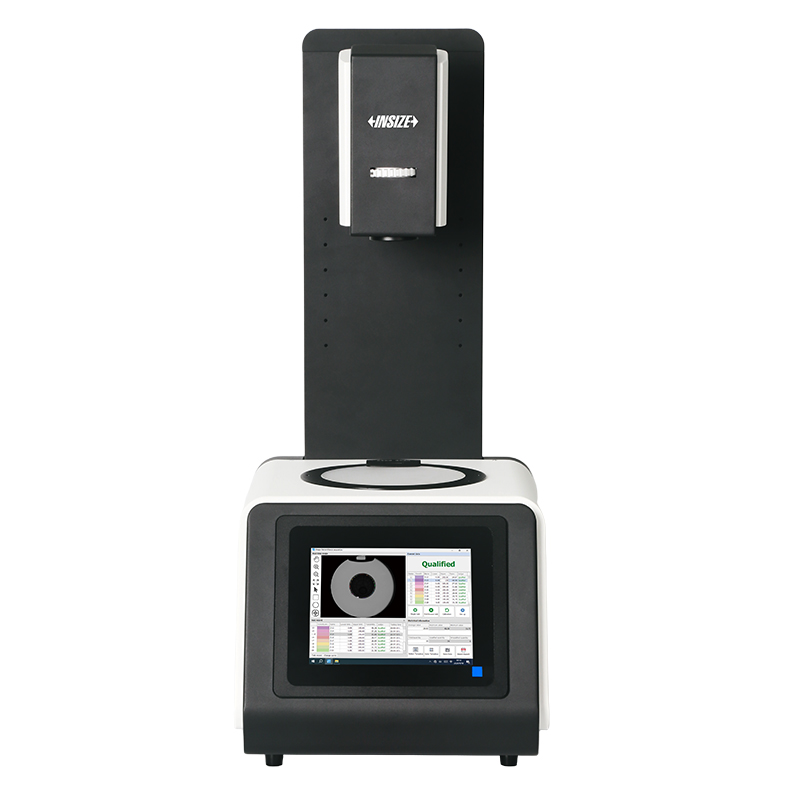

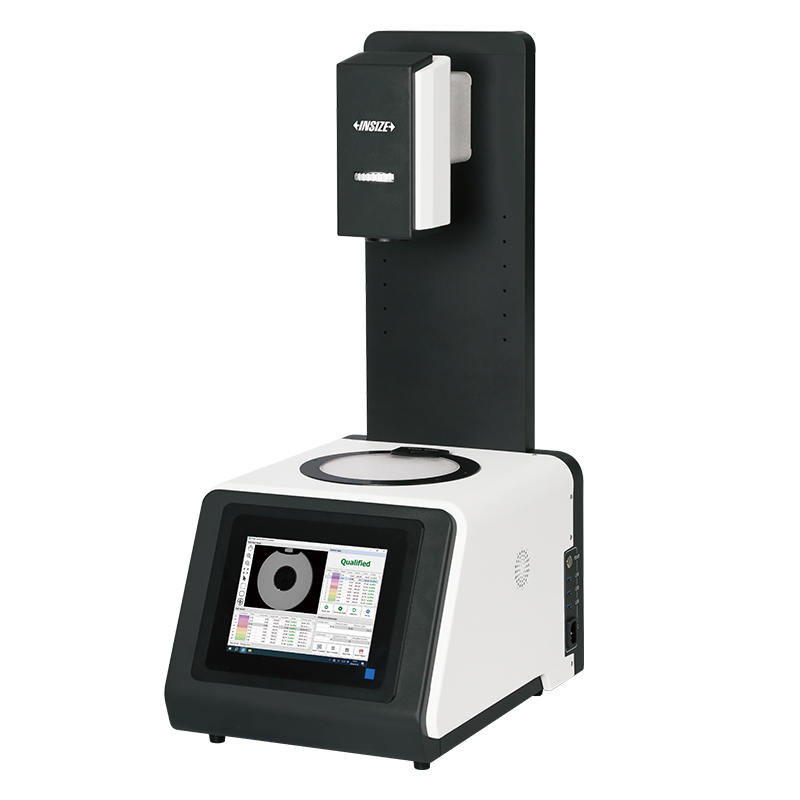

Transmittance Imagers
Code: 5825-L Series
For transmittance testing of plastic parts in laser welding
User-define detection zones and transmittance range
Automatically detects transmittance of the detection area and accurately judges welding quality as OK or NG
Ultra-fast detection speed, measurement completed within 1 second
Built-in calibration function
| Code | Accuracy | Wavelength |
|---|---|---|
| 5825-L850 | 0.01% | 850nm |
| 5825-L905 | 0.01% | 905nm |
| 5825-L915 | 0.01% | 915nm |
| 5825-L940 | 0.01% | 940nm |
| 5825-L980 | 0.01% | 980nm |
View the complete
product specifications
