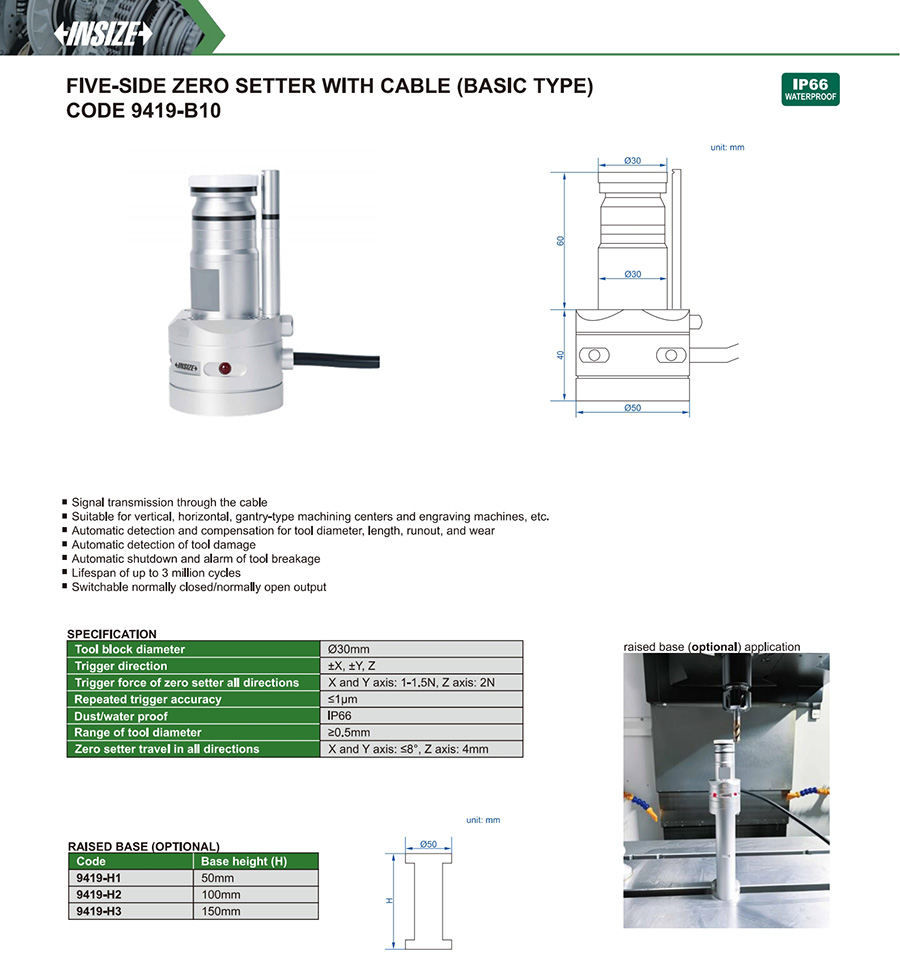

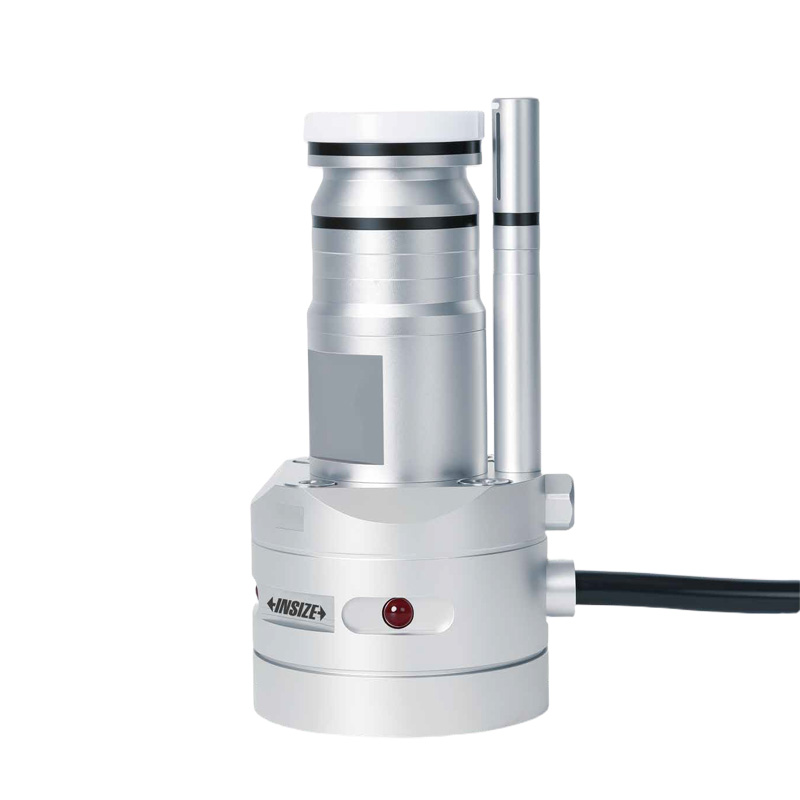

Five-Side Zero Setter With Cable (Basic Type)
Code: 9419-B10
Signal transmission through the cable
Suitable for vertical, horizontal, gantry-type machining centers and engraving machines, etc.
Automatic detection and compensation for tool diameter, length, runout, and wear
Automatic detection of tool damage
Automatic shutdown and alarm of tool breakage
Lifespan of up to 3 million cycles
Switchable normally closed/normally open output
| Code | Trigger direction | Repeated trigger accuracy | Trigger force |
|---|---|---|---|
| 9419-B10 | ±X, ±Y, Z | ≤1μm | X and Y axis: 1-1.5N, Z axis: 2N |
